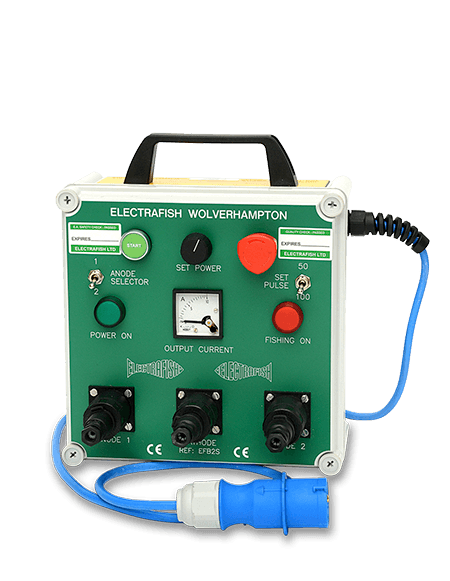

The EFB2 is a highly effective and powerful standard 2 anode electrofishing machine with a maximum output of 15 amps at 200 volts.

This machine is designed for use with generators producing up to 4 kW of output power. Generators must be specially converted for electric fishing use.

The EFB2 is designed for situations where either 1 or 2 anodes are required. The anodes and cathodes supplied with this machine use standard BS4343 waterproof plugs.

The machine is fitted with an ammeter scaled 0 to 15 Amps (see Note), STOP and START buttons, Set Power control from 0-100%, power on and fishing on LED indicators, a 50/100 pulses per second switch and an anode selector switch to select operation using 1 or 2 anodes.

A generator cable is supplied which can be fitted with a 3 or 4 pin standard blue BS4343 plug. A suitably powered generator can be supplied. For example, the Honda Eu10i 1Kw, Eu22i 2.2Kw, Eu3i 3Kw and Honda powered Pramac E4000 4kW fully converted for electric fishing use.

Full instructions and a 3 year warranty, subject to conditions, are supplied with each machine.

Input Voltage: 230 Volts 50 Hertz
Generator Rating: Up to 4000 Watts

Output:

• Fully variable 50/100 pulses per second
• Maximum Output 15 amps at 200 volts DC

Protection:

• All machines are protected by easily accessible high speed semiconductor fuses.
• A full set of spare fuses is provided.

Controls and Indicators:

• Start button
• Stop button
• Power on LED
• Fishing on LED
• Set Output Control 0-100%
• 50/100 Pulses per Second Selector Switch
• 1-2 Anode Selector Switch
• Ammeter 0-15 Amps

Sockets:

• 2 3-pin Blue BS4343 sockets for the anodes.
• 2 3-pin White BS4343 socket for the anode switches.
• 1 3-pin Yellow BS4343 socket for the cathode.

Size and Weight:

• Weight: 8 Kg
• Height: 500mm
• Width: 330mm
• Depth: 260mm

All machines, electrodes and electric fishing generators designed and built by Electrafish Ltd are made to order and often customized to meet the specific requirements of the application.

These include consideration of voltage and current levels appropriate to the targeted water conductivity ratings, electrode sizing, cable lengths as well as the most suitable generator modified for safe electric fishing use.

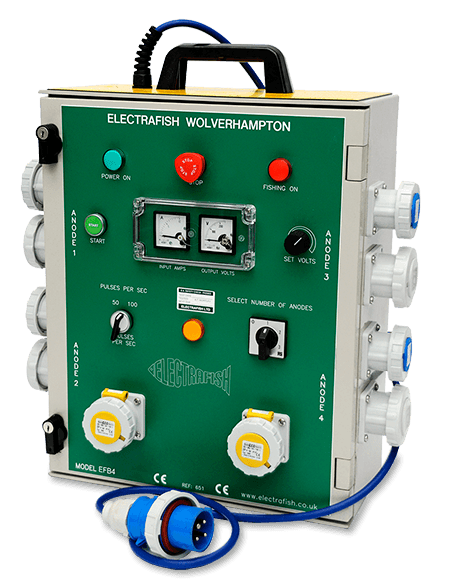

While Electrafish manufactures a standard range of battery and generator powered electric fishing machines with standard ratings up to 400 volts and 4 Kw, we have supplied machines with outputs of 0- 1500 volts and power levels up to 10 Kw. In view of the wide variety of equipment manufactured by Electrafish Ltd, coupled with our principal objective which is to strive always to optimise customer satisfaction on all sales, please contact us, and we will be pleased to discuss your requirements and send you our best prices.
