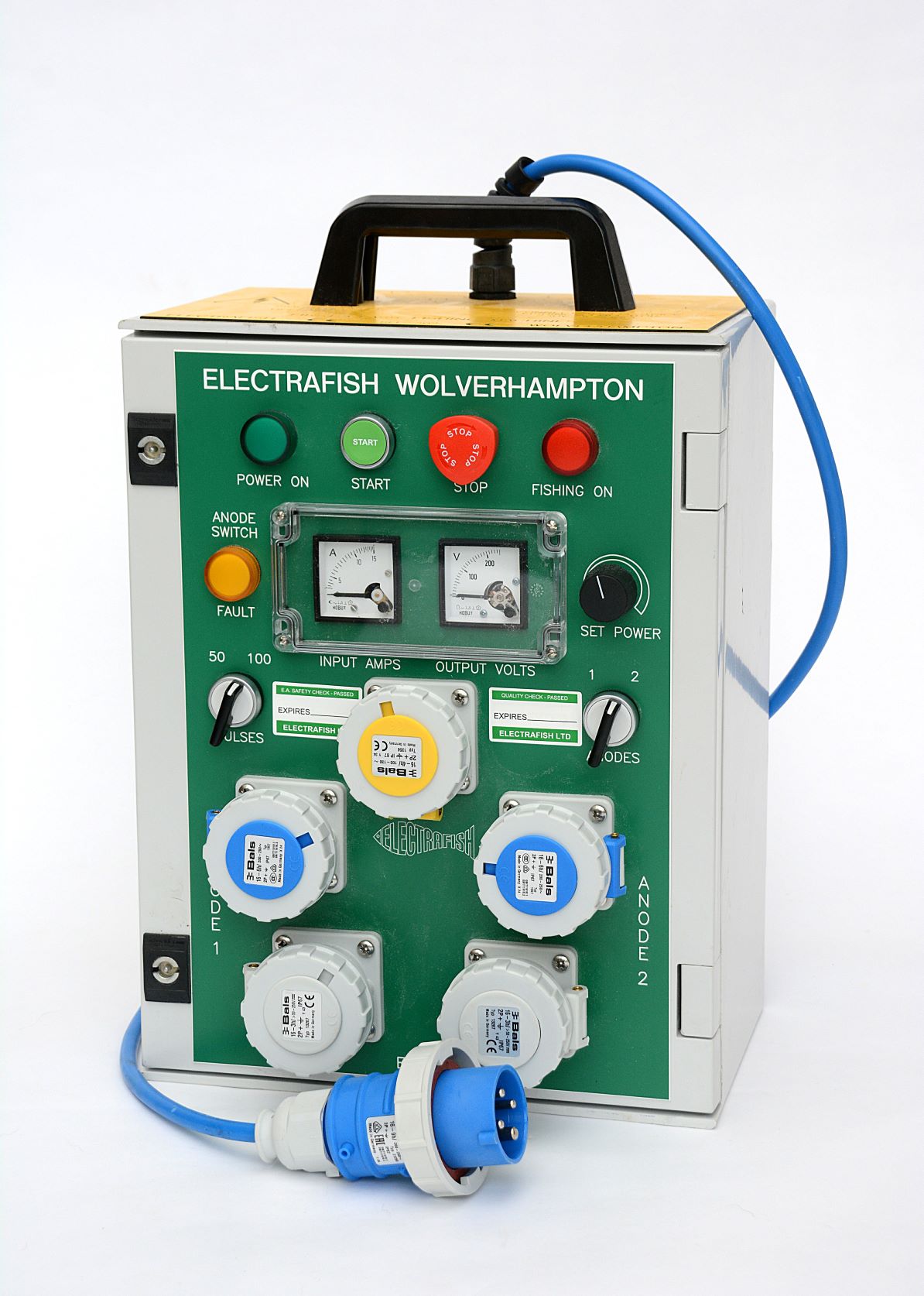

The EFB2EA is a very effective and powerful electric fishing machine designed specifically to new UK Environment Agency specifications. It features a new safety control system which works by continuously monitoring every connection of every anode connected to the control box. The control box can be supplied as a 2.5kw or 4kw machine rated at 10 or 15 amps. The maximum output of the EFB2EA is 15 amps at 200 volts DC.

The anodes and cathodes supplied with this machine use standard BS 4343 waterproof connectors. A completely new range of anodes has been designed for use with this machine. The new anodes have been specifically designed to be ergonomically comfortable and easy to operate.

The machine is fitted with STOP and START buttons, Set Power control from 0-100%, power on LED (green) and fishing on LED (red) and Anode Switch Fail LED (Orange), a 50/100 pulses per second selector switch, 1-2 anode selector switch. Ammeter 0-10 amps or 0-15 amps and Voltmeter 0-250 volts DC.

A generator lead in arctic blue cable is fitted and terminated with a standard BS4343 plug. A suitably powered generator can be supplied, for example the Honda Eu10i 1Kw, Eu22i 2.2Kw, Eu3i 3Kw and Honda-powered Pramac E4000 4kW fully converted for electric fishing use.

Full instructions and a 3 year warranty, subject to conditions, are supplied with each machine.

Input Voltage: 230 Volts 50 Hertz
Generator Rating: 4000 Watts

Output:

• Fully variable 50/100 pulses per second
• Supplied as 2.5 or 4 kW rated and at 10 or 15 Amps at 200 Volts DC

Protection:

• All machines are protected by easily accessible high speed semiconductor fuses.

Controls and Indicators:

• Start button
• Stop button
• Power on LED
• Fishing on LED
• Anode Switch Fail LED Orange
• Set Output Control 0-100%
• 50/100 Pulses per Second Selector Switch
• 1-2 Anode Selector Switch
• Ammeter 0-15 Amps
• Voltmeter 0-250 Volts DC

Sockets:

• 2 3-pin Blue BS4343 sockets for the anodes
• 2 3-pin White BS4343 sockets for the anode switches
• 1 3-pin Yellow BS4343 socket for the cathode

Size and Weight:

• Weight: 8 Kg
• Height: 460mm
• Width: 330mm
• Depth: 260mm

All machines, electrodes and electric fishing generators designed and built by Electrafish Ltd are made to order and often customized to meet the specific requirements of the application.

These include consideration of voltage and current levels appropriate to the targeted water conductivity ratings, electrode sizing, cable lengths as well as the most suitable generator modified for safe electric fishing use.

While Electrafish manufactures a standard range of battery and generator powered electric fishing machines with standard ratings up to 400 volts and 4 Kw, we have supplied machines with outputs of 0- 1500 volts and power levels up to 10 Kw. In view of the wide variety of equipment manufactured by Electrafish Ltd, coupled with our principal objective which is to strive always to optimise customer satisfaction on all sales, please contact us, and we will be pleased to discuss your requirements and send you our best prices.
